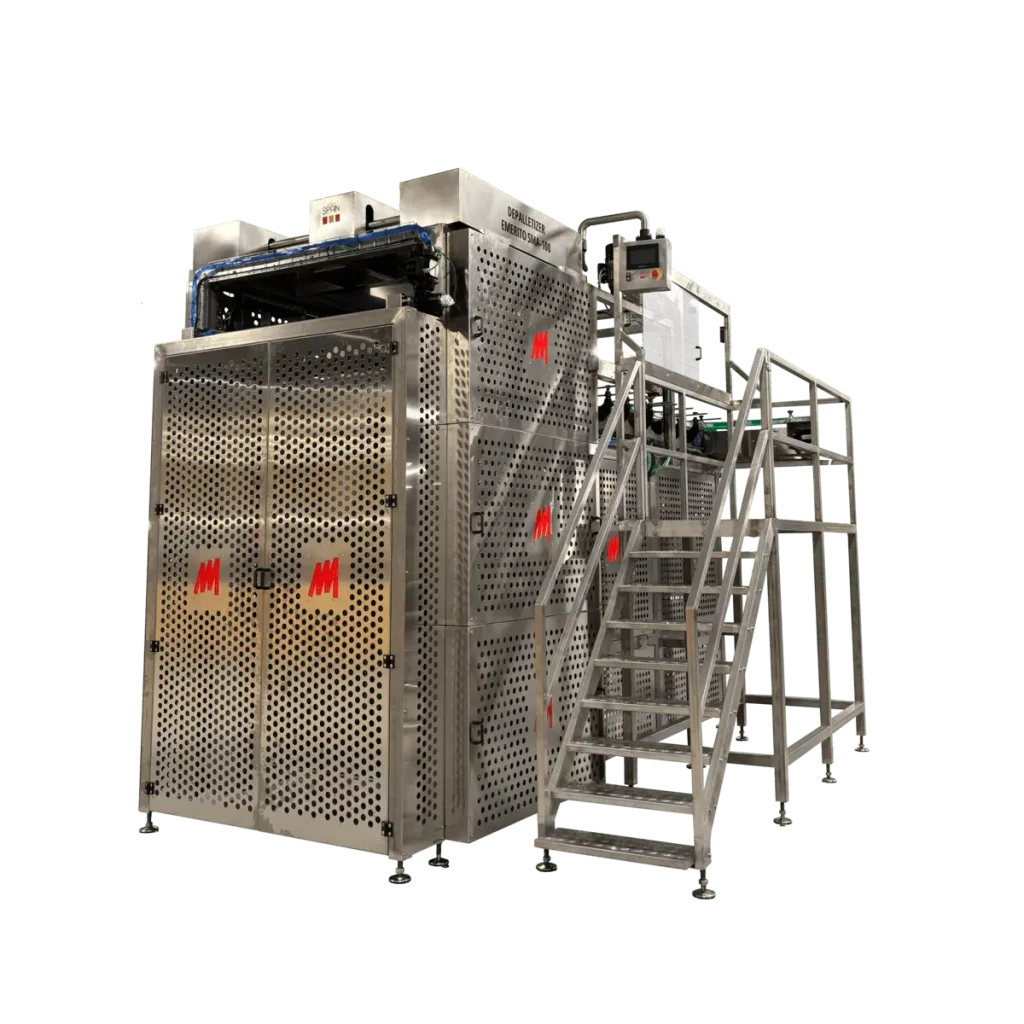

Depalletizing Machine

Equipment designed to depalletize rigid empty containers such as jars, cans or bottles, which are already palletized, with the function to align them one by one and to correctly convey them to the canning line. It can also be used at the end of the line with full containers to align them one by one and lead them to the batch marking and labeling area.

We offer alternatives to depalletize also plastic containers, according to formats and production range, always after studying the particular application.

Depalletizing system by Cartesian Sweeping, layer by layer, in addition to including accumulation table and its output belts at different speeds to place the containers in line, one by one.

We have some options to automate our depalletizing systems to the maximum, such as:

  • Automatic pallet loading system prior to depalletizing, with capacity to accommodate 2 pallets in waiting and one additional pallet in loading.
  • Automatic removal system of separators between layers, which also includes a stainless steel cage to accumulate them in a controlled way during the work.
  • Automatic output of empty pallets.

As a complement, we can integrate a system for lowering the containers to the height of the working line by means of belts with mittens, where, if the customer wishes, a system for cleaning the inside of these containers can be incorporated, using water, air and/or steam as treatments according to each particular requirement.

We have a wide range of options, designs and variants, which allow us the maximum flexibility to adapt to the customer’s facilities and production requirements.

Ideal for your canning line

Our Models

Containers & Palletised

Jars, cans, PET, bottles, etc.

Capacity

1,5 leyers / min.

Optional complements

Automatic carton layers removal.





Containers & Palletised

Jars, cans, PET, bottles, etc.

Capacity

2,5 layers / min.

Optional complements

Automatic carton layers removal.

Second pallet automatic charge.

Containers unloading – blowing system.

Containers & Palletised

Jars, cans, PET, bottles, etc.

Capacity

5 layers / min.

Optional complements

Automatic carton layers removal.

Second pallet automatic charge.

Containers unloading – blowing system.
